Products Description

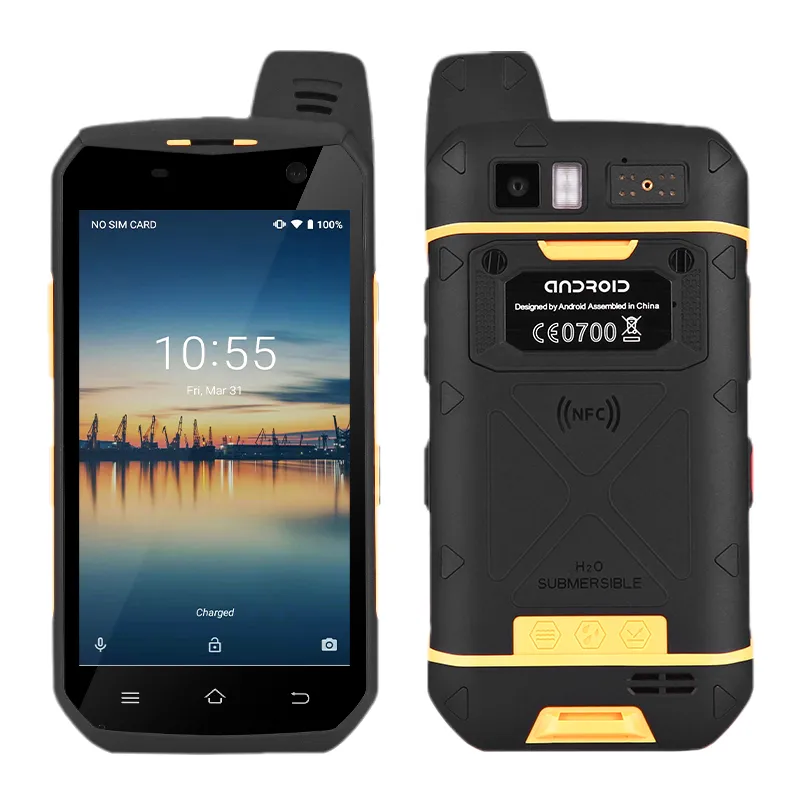

5 inch Smart Ruggedphone MT6762/4G/64G IP68 protection level
Product Introduction
Our 5inch smart ruggedphone has passed the IP68 waterproof performance test, which makes our tablet super waterproof, whether it is in the rain, in the shower, or even in water activities, you will You can use the tablet with confidence. Tablet PC has been carefully designed with a perfect closed shell and passed the strict military standard test. It is dust-proof and drop-proof. It is an essential companion for construction workers and outdoor explorers.
| Product Appearance | |||
| Type | Details | Standard Configuration | Optional configuration |
| Product Form | Product Form | 5 inch smart ruggedphone | NA |
| Dimension | 145*75*22mm | NA | |
| Weight | 295g | NA | |
| Product Color | Black+Yellow | NA | |
| LCD | Screen Size | 5 inch 16:10 | NA |
| Resolution | 720*1280 | NA | |
| Brightness | 450Nit | ||
| TP | Touch panel | 5 points capacity TP，OGS+gorilla glass | NA |
| Camera | Front | Front 8.0MP FF | NA |
| Rear | Rear 16.0MP, AF Flashlight | NA | |
| Speaker | Built-in | Front speaker Φ18 + Rear speaker 2030 with SMATPA | NA |
| Microphone | Built-in | Waterproof microphone *1 | NA |
| Key | Power Key *1,Volume Key + *1,Volume Key - *1,SOS key *1,PTT key *1 | NA | |
| Battery(tablet) | Type | Li-ion battery | NA |
| Capacity | 5000mAh | NA | |
| Endurance | 10h ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default ) | NA | |
| System Hardware Configuration | |||
| Type | Details | Descriptions | Optional configuration |
| CPU | Type | MT6762 | NA |
| Speed | 4×Cortex-A53 @ 2.0GHz 4×Cortex-A53 @ 1.5GHz | NA | |
| GPU | Type | IMG PowerVR GE8320 | NA |
| RAM | LPDDR4 | 4GB | Optional：6GB+128GB |
| ROM | Emmc | 64GB | |
| Sensor | Built-in | support G_sensor/L-Sensor/Proximity sensor/Gyroscope/Compass/Distance induction | NA |
| Internet Connections | |||
| Type | Details | Descriptions | Optional configuration |
| WIFI | WIFI module | IEEE 802.11 a/b/g/n | NA |
| Bluetooth | Built-in | BT4.0 (BLE) | NA |
| 4G | Built-in | GSM：B2/B3/B5/B8 WCDMA：B1/B2/B5/B8 TDS：B34/B39 TDD:B38/B39/B40/B41 FDD:B1/B3/B5/B7/B8/B17/B20/B66/B71 | NA |
| GNSS | Built-in | Beidou+GPS+glonass | NA |
| NFC | Built-in | 13.56 Mhz | NA |
| I/O Ports | |||
| Type | Details | Descriptions | Optional configuration |
| SIM Card | SIM port | SIM x1 | Optional：SIM×2 |
| USB port | Extending external storage and data exchange | Type C *1 (Charging+Data) | NA |
| Earphone Jack | audio output | ∮3.5mm Standard earjack *1 | NA |
| Micro SD | Micro-SD *1 | Optional | |
| Standard Accessories | |||
| Type | Details | Descriptions | Optional configuration |
| Adapter | Standard | AC100V ~240V 50Hz/60Hz Output Type-c 5V/2A | Optional:Chinese, American, European and Australian regulations |
| Software Configuration | |||
| Type | Details | Descriptions | Optional configuration |
| Operation System | Operation System Version | Android:12 | Optional：Android 10.0 Android12 |
| Product Certificate | |||
| Type | Details | Descriptions | Optional configuration |
| Certificates System | IP68 | certified | NA |
| Drop certification | certified | NA | |
| ROSH | certified | NA | |
| CE \FCC | Meet the standard, not yet certified | NA | |
| MIL-STD-810G | Meet the standard, not yet certified | NA | |
| Battery | UN38.3，MSDS,Air and shipping reports，IEC62133 | NA | |
| Reliability | |||
| Type | Details | Descriptions | Optional configuration |
| Rugged Features | Falling height | from 120cm height to wooden floor with booting status | |
| Working temperature | ’－20℃～60℃ | ||
| Storage temperature | ’－30℃～70℃ | ||
| Humidity | Humidity: 95% Non-Condensing | ||
Product Features
■Ruggedphone are designed to withstand harsh conditions, including drops, shocks, vibration, and exposure to dust and water.
■The integration of 4G connectivity ensures high-speed data transfer, low latency, and improved network reliability.
■Smart Ruggedphone running on Android can leverage a variety of productivity apps from the Google Play Store.
■Android's open-source nature allows for greater customization and flexibility. Organizations can tailor the operating system to meet specific needs, integrating business apps and tools seamlessly.
■Samrt Ruggedphone often come equipped with large-capacity batteries to ensure extended usage in the field without frequent recharging.
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
