MATX Industrial motherboard,Intel@PCH H87 or H81 Chip,2LAN 6COM 13USB,4-Slot(2PCI)Expansion

MATX Industrial Motherboard LGA1150 with 2 PCI Expansion



Product Introduction

Industrial MATX motherboards are designed to provide consistent, reliable performance in harsh and rugged environments. 2 PCI expansion slots and 13USB 6COM for a wide range of external devices



System
CPU/GPU Supports LGA1150 architecture 4th generation Intel® Core™ processors i7 / i5 / i3, Pentium® / Celeron® CPU
System on Chip Intel@ PCH H87 or H81
Memory 2DDR3 DIMM slots, supporting up to 16GB SDRAM
Storage 2×SATA (H87 is 2 SATA 3.0, H81 is 1 each SATA 3.0 and SATA 2.0), 1 × mSATA
Sound card Realtek HD Audio
Ethernet 2×Intel i211 Gigabit LAN
Graphics Board CPU integrated graphics
Display VGA,DVI,HDMI
USB 9USB2.0 ;4USB3.0(only 2 for H81 chips)
GPIO 16-bit GPIO (8 inputs, 8 outputs)
COM 6COM RS232(2COM Support RS422 / 485),Optional LPC daughter board extension 4COM

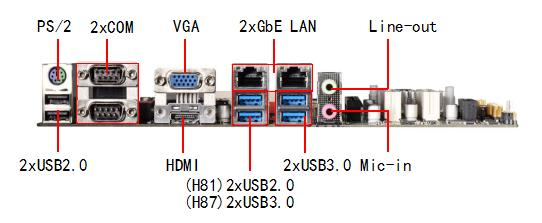

Backplane I / O PS2+2USB2.0,  2COM, VGA+HDMI,  2 RJ45 LAN+4USB,  Line-out/in+Mic-in
Board I / O 6USB2.0 , 1 Vertical USB,  4COM ,  front audio , CLR_CMOS ,  CPU fan power ,  System fan power , GPIO,  Front panel ,  24P+4P ATX,  Print(LPT),  LPC
Expand 1PCIEx16;  PCIEx4(H81 for x1 signal);  2PCI
System Support WindowsWINXPWIN 7WIN 10 ...),Linux



Product Features

■ Support for LGA 1150 architecture 4th generation Intel® Core processors

■ 2 x Intel Gigabit LAN ports

■ VGA, DVI, HDMI ports

■ 6COM RS232, 2COM support RS422 / 485

■ 9USB2.0, 4USB3.0 (only 2 for H81 chips)

■ 16-bit GPIO support (optional)

■ 1PCIEx16; 1PCIEx4 (H81 is x1 signal); 2PCI

■ 256 level watchdog

■ Support for MSATA





Mechanical & Environmental
Power supply ATX Heat dissipation Fan Size(L×W) 306mm×245mm
Working temperature -15~55 Storage temperature -40~75 Environmental humidity 0~90% air humidity,no condensation
Packing list MATX-H87AH26D motherboard ×1 SATA data wire ×1
COM line                          ×2



Product Installation Dimension Diagram
