Intel 1037U Embedded Fanless Box PC with 1PCI Expansion Slot
Intel 1037U Embedded Fanless Box PC with 1PCI Expansion Slot

Intel 1037U Embedded Fanless Box PC with 1PCI Expansion Slot

All-aluminum Fanless Box PC, support soldered onboard 1037U CPU, 2LAN, 6COM, 6USB, 1PCI Expansion.

  • Certification :

    CE, FCC
  • OEM/ODM :

    Yes
  • Shipping Place :

    Shenzhen
  • Packaging :

    Carton
  • Delivery Time :

    According to Quantity
  • Payment Terms :

    T/T
  • Supply Ability :

    motherboard 100000 pieces / month; IPC 5000 sets / month
  • Origin :

    Guangdong, China
  • Brand :

    Yanyue
  • Stock :

    Yes
  • Model :

    MIS-8106

Intel 1037U Embedded Fanless Box PC with 1PCI Expansion Slot

Product Introduction

Yanyue MIS-8106  is a fanless Box PC with a modular,wire-free design that is suitable for a variety of harsh environments.The PCI slot can support a variety of applications such as motion and vision cotrol.

Specifications Optional Configurations
Chassis All aluminum case with teeth, sandblasted and oxidized black Other colours can be customized
Front With power switch/HDD/LAN1/LAN2 indicator; Mic in+Line out;PS/2;2COM RS232;5USB2.0
Back DC 12V~24V input; VGA + HDMI display;1USB; 2RJ45 gigabit network port,3RS232/422/485 + 1RS232/485,1PCI Expansion
Hard disk rack 1 hard disk rack, supporting one 2.5 inch HDD/SSD
Adaptive Motherboard Dedicated motherboard

CPU/GPU Intel 1037U
Memory 4G DDR3  Optional 8G notebook memory
Hard Disk 64G MSATA Optional 32G/64G/256G up to 1T mSATA SSD; support 2.5 inch SSD and HDD
Ethernet 2LAN (Gigabite Network)
Display Interface VGA + HDMI
Size 246*209*93mm Net/Gross Weight 3/3.5KG
Power Supply Standardized 12V@5A adapter

Installation mode Bracket installation



Product Features

■ All-aluminium toothed fan-free design, fully sealed

■ Modular wire-free design

■ Soldered Onboard 1037U CPU

■ 2LAN, 6 COM,  6 USB,1PCI Expansion

■ Support MSATA + 2.5 inch dual hard disk

■ Support VGA+HDMI  dual display

Fanless Box PCModular wire-free design Box PC



Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products

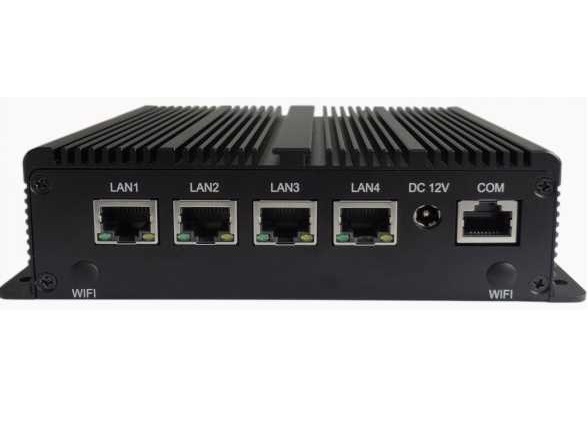

4 LAN Fanless Embedded Box PC With Expansion Slot
