Embedded Computer
Products
Industrial Wide Voltage Input Fanless Box PC
Industrial Wide Voltage Input Fanless Box PC
Industrial Wide Voltage Input Fanless Box PC

Industrial Wide Voltage Input Fanless Box PC

All-aluminum Fanless Box PC, Soldered Onboard J1900 or i3 i5 i7 4th Gen U series CPU, 2LAN,6COM,6USB

  • Certification :

    CE, FCC
  • OEM/ODM :

    Yes
  • Shipping Place :

    Shenzhen
  • Packaging :

    Carton
  • Delivery Time :

    According to Quantity
  • Payment Terms :

    T/T
  • Supply Ability :

    motherboard 100000 pieces / month; IPC 5000 sets / month
  • Origin :

    Guangdong, China
  • Brand :

    Yanyue
  • Stock :

    Yes
  • Model :

    MIS-EPIC01B

Industrial Wide Voltage Input Fanless Box PC

Product Introduction

Designed to streamline industrial automation processes such as factory control and product lifecycle management, all embedded box PCs are reliable, flexible and low-maintenance, and are the perfect choice for machine vision architecture.



Specifications optional configurations
Chassis All aluminum case with teeth, sandblasted and oxidized black Other colours can be customized

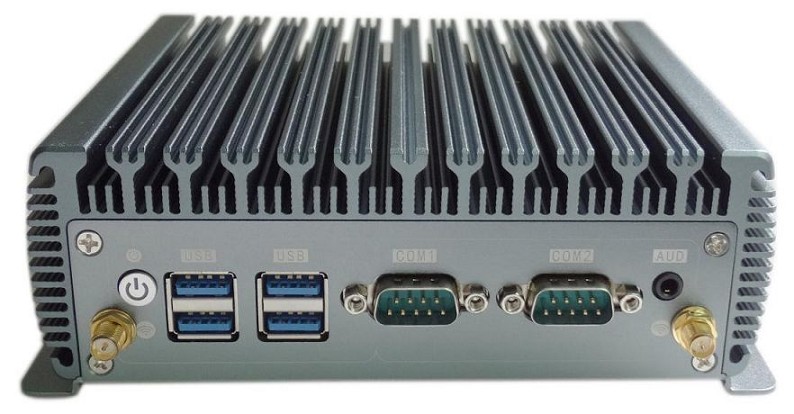

Front With power indicator switch; 2COM; 4USB2.0  Customizable with customer logo or more serial or parallel ports

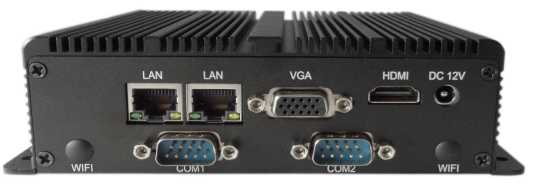

Back DC input; VGA + HDMI display; 1/2USB3.0; 2RJ45 gigabit network port; Line out + MIC in; 4COM; 2 antenna aperture (support WIFI or 4G)
Hard disk rack Motherboard support for MSATA SSD
Adaptive Motherboard Dedicated Soldered Onboard J1900 or 4th generation CPU for  motherboard
CPU/GPU J1900 Optional Soldered Onboard Intel Pentium 3805U/i3/4010U/i7 4500U
Memory 4G DDR3  Optional 8G notebook memory
Hard Disk 64G MSATA Optional 32G/128G/256G up to 1T mSATA SSD
Ethernet 2LAN (Intel Gigabite Network)
Display Interface VGA+ HDMI
Size 234*135*57.5mm Net/Gross Weight 1.5/2KG
Power Supply Standardized 12V@5A adapter  Optional 9~36V wide voltage input
Installation mode Bracket installation



Product Features

■  Soldered Onboard J1900 or i3/i5/i7 4th Generation U series CPU

■ 2LAN(Intel gigabite network chip)

■ 6 USB(1 or 2USB3.0)

■ Flexible configuration, optional memory hard drive of various capacities

■ Support VGA+HDMI  dual display

■ Optional 9~36V wide voltage input



Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration



Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
