3.5" Motherboard Soldered On Board Intel® J1900 CPU 2LAN 6COM 10USB
3.5" Motherboard Soldered On Board Intel® J1900 CPU 2LAN 6COM 10USB

3.5" Motherboard Soldered On Board Intel® J1900 CPU 2LAN 6COM 10USB

ES3-J1900DL26A Single Board Computer, support for watchdog, diskless startup, network wakeup, power on and timing.

  • Certification :

    CE, FCC
  • OEM/ODM :

    Yes
  • Shipping Place :

    Shenzhen
  • Packaging :

    Carton
  • Delivery Time :

    According to Quantity
  • Payment Terms :

    T/T
  • Supply Ability :

    motherboard 100000 pieces / month; IPC 5000 sets / month
  • Origin :

    Guangdong, China
  • Brand :

    Yanyue
  • Stock :

    Yes
  • Model :

    ES3-J1900DL26A

3.5" Motherboard Soldered On Board Intel® J1900 CPU 2LAN 6COM 10USB



Product Introduction

ES3-J1900DL26A Single Board computer is designed for Industrial BOX, industrial tablet computer, industrial automation, numerical control machinery, on-board computer, medical treatment, POS cash register, etc. Built For Modular Design, Easy Replacement, Expansion & Cost Efficiency.



Product Features

■ Board sticker Intel J1900 CPU

■ Large radiator without fan structure

■ Easy to extend 3G/4G wireless with SIM card slot

■ VGA, HDMI, dual Channel 24-bit LVDS, supports synchronous / Asynchronous dual display

■ 2LAN Intel Gigabit Network Card, 6 COM RS-232 (1 RS-485 can be set up)

■ 1USB 3.0;9USB2.0;GPIO pin

■ DC12V input

■ Support for watchdog, diskless startup, network wakeup, power on and timing

ES3-J1900DL26A Single Board Computer

Single Board Computer



System
CPU/GPU Board sticker Intel J1900 ultra-low power CPU
Slug CPU single chip
Memory 1 DDR4 Notebook memory slot with minimum support of 16GB
Storage 1 × SATA;1 × mSATA
Sound card Realtek ALC662, supports 5.1 channels
Ethernet 2 Inte 82583V Gigabit network cards
Display Integrated Intel HD graphics card
LVDS Dual channel 24-bit LVDS, supports maximum resolution: 1920 × 1200
Double display VGA,HDMI,LVDS synchronous / asynchronous dual display
COM 6 × COM RS-232 (voltage can be set), COM2 can be set to RS485
USB 1USB3.0 ,9USB2.0

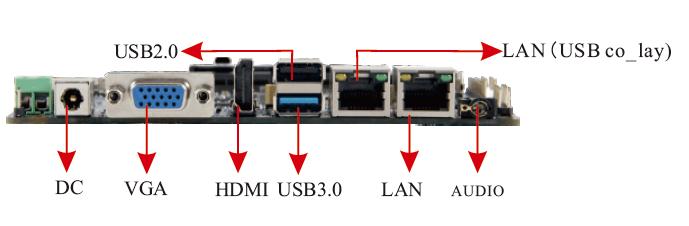

Backplane I / O DC Jack; VGA; HDMI; 2USB 3.0; 2×RJ-45; 1×Audio Jack,

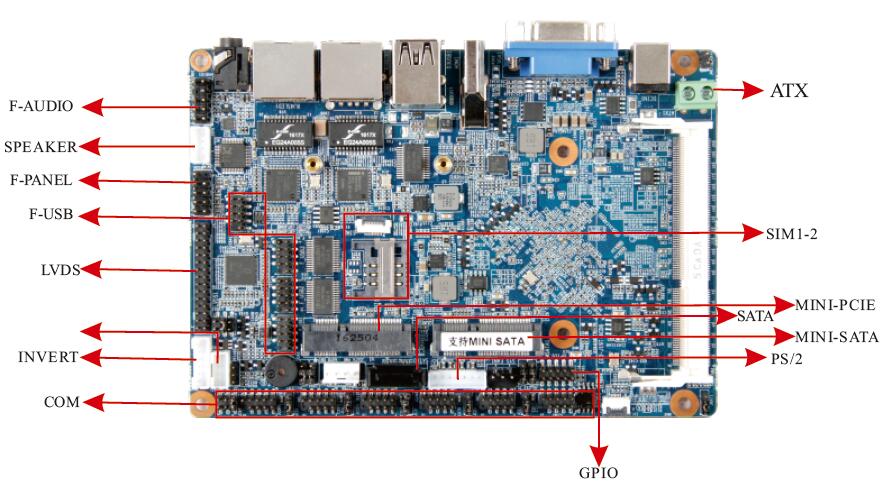

Board I / O 1 × LVDS pin, 1 × Invert pin, 1 × front audio pin, 1 × SPDIF pin
6 × COM pin (voltage can be set, COM2 can be set to RS485), 1 GPIO pin (2 bits)
4 × USB 2.0 pin extensible 8USB 2.0 interface, 1 × SIM card slot
1 × 2-pin 12V power supply interface, 1 × CPU fan power outlet, 1 × system fan power outlet
1 × 4 pin SATA hard disk power socket, 1 × front panel pin, 1 × buzzer
Expand 1个MINI PCIE
Specific function Support for watchdog, diskless startup, network wakeup, power on and timing



Mechanical & Environmental
Power Supply DC12V Heat dissipation Fan Size(L×W) 146mm×102mm
Working Temperature -15~60 Storage Temperature -40~75 Environmental humidity 0~90% air humidity,no condensation
Packing list ES3-J1900DL26A motherboard ×1 SATA  power supply line ×1
USB line                        ×1 SATA  data line                            ×1
COM line ×1



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
