ES3-H4DL268
3.5 inch motherboard, Soldered on board Intel® Haswell U series 4 generation 3805U 4200U CPU, 2LAN 6COM 8USB
3.5" single board computer Soldered on board Intel® Haswell U series 4 generation CPU, 2LAN 6COM 8USB
Product Introduction
Experience exceptional performance with our 3.5" embedded motherboard featuring a soldered-on Intel® Haswell U series 4th generation processor. Elevate your computing capabilities with cutting-edge technology and seamless integration. Unleash the power of innovation with a compact yet powerful solution for your industrial needs.
Product Features
■ Soldered onboard Intel® Haswell U Series 4 generation Celeron/Pentium/i3 / i5 / i7 CPU
■ 2 x Realtek 8111 Gigabit LAN cards
■ VGA, HDMI, LVDS or EDP interface
■ 6COM, 6USB2.0, 2USB3.0
■ 8-bit GPIO
■ SIM card holder
■ 1 x MSATA, 1 x Mini PCIE expansion
|
Specification |
|
|
CPU/GPU |
Soldered onboard Intel® Haswell U Series 4 generation Celeron/Pentium/i3 / i5 / i7 CPU |
|
Memory |
2×DDR3 SO-DIMM laptop slot，up to 16GB SDRAM |
|
Storage |
2×SATA ，1×M-SATA |
|
Sound Card |
Realtek HD Audio |
|
NIC |
2×Realtek8111 gigabit LAN |
|
Display Card |
CPU integrated graphic |
|
Display Interface |
1×VGA, 1×HDMI；1× LVDS or EDP |
|
USB2.0 |
6 |
|
USB3.0 |
2 |
|
GPIO |
8 bits（4 in，4 out） |
|
COM |
6COM RS232 |
|
Backplane I / O |

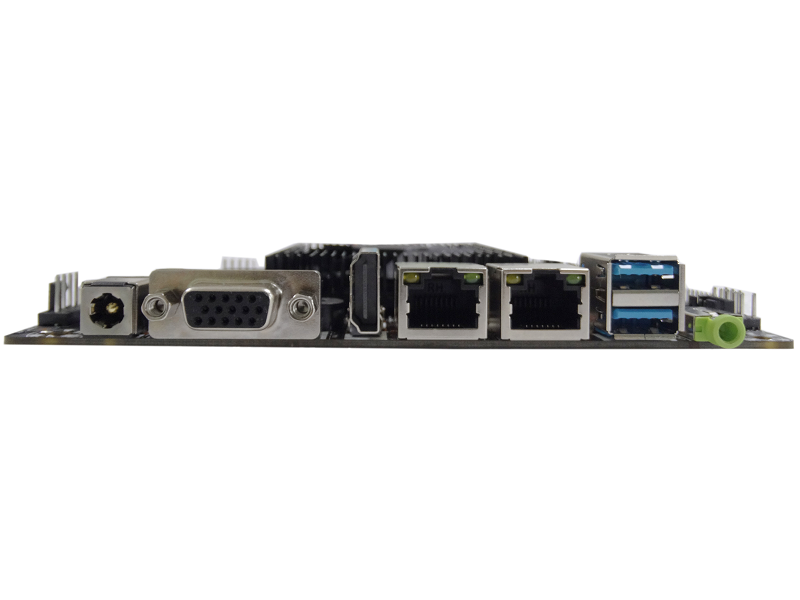

DC in, VGA, HDMI, 2 RJ45 LAN, 2 USB3.0, Line-out |
|
Board I / O |
6 USB , 6 COM , front audio , CLR_CMOS , CPU fan power , GPIO Front panel , Speaker, SIM Socket, 4P DC in, LVDS or EDP, invert, Print |
|
Expansion |
1 MSATA, 1 MINI PCIE |
|
System |
Support Windows（WIN 7，WIN 10 ...），Linux |
|
Mechanical & Environmental |
|||||
|
Power Supply |
DC 12V |
Heat Dissipation |
Fan |
Size(L×W) |
146mm×102mm |
|
Working Temperature |
-15~55℃ |
Storage Temperature |
-40~75℃ |
Environmental Humidity |
0~90% air humidity，no condensation |
|
Packing List |
ES3-H4DL268 motherboard×1，SATA data cable×1，SATA power cable×1 |
||||
|
Order Information |
|
|
ES3-3805DL268 |
Intel@ Haswell 3805U Pentium Dual Core 1.9G CPU |
|
ES3-H4DL268-I3 |
Intel@ Haswell i3 4005U，4030U/5005U/5030U optional |
|
ES3-H4DL268-I5 |
Intel@ Haswell i5 4200U，4300U/5200U/5300U optional |
|
ES3-H4DL268-I7 |
Intel@ Haswell i7 4500U，4600U/5500U/5600U optional |
