EP3-S6DL26A

3.5" EPIC Embedded motherboard with Intel® Skylake U series i3/i5/i7 CPU soldered on the back, 2LAN6COM10USB



  • Certification :

    CE, FCC
  • OEM/ODM :

    Yes
  • Shipping Place :

    Shenzhen
  • Packaging :

    Carton
  • Delivery Time :

    According to Quantity
  • Payment Terms :

    T/T
  • Supply Ability :

    motherboard 100000 pieces / month; IPC 5000 sets / month
  • Origin :

    Guangdong, China
  • Brand :

    Yanyue
  • Stock :

    Yes
  • Model :

    EP3-S6DL26A

3.5" EPIC Embedded Motherboard 2LAN6COM10USB Single Board Computer



Product Introduction

The EP3-S6DL26A is a 3.5” EPIC Embedded motherboard for low power consumption, small footprint, silent and dust-proof embedded industrial PC.

3.5” embedded boards measure 146 x 102mm and feature fanless and low profile compact designs, ultra low or low power consumption, coastline connectors along the PCB edge, rich I/O and expansion ability, high shock and vibration resistance, and extended temperature options. 3.5” embedded boards are the best choice for high performance or space limited applications.



Product Features

■ Soldered on-back Intel®Skylake Useries i3/i5/i7 CPU

■ 2LAN(gigabit Intel network)

■ VGA, HDMI, LVDS display interface

■ 6COM

■ 8USB2.0, 2USB3.0

■ 8 bit GPIO

■ 1 MSATA, 1 Mini PCIE expansion



Specification

CPU/GPU

Soldered on-back Intel® Skylake/Kabylake 6th/7th generationUseriesi3/i5/i7 CPU

Memory

1 x DDR4 SO-DIMM notenook memory slot,up to 16GB SDRAM

Storage

1×SATA,1个M-SATA

Audio

Realtek HD Audio

Ethernet

2 LAN Intel gigabit network

Graphics Board

CPU integrated graphics card

Display

1×VGA, 1×HDMI;1× LVDS

USB2.0

8

USB3.0

2

GPIO

8bits(4 in  4 out)

COM

6COM

BackplanI / O

DC in,  VGA,  HDMI,  2USB3.0,  2 RJ45LAN,  Line-out

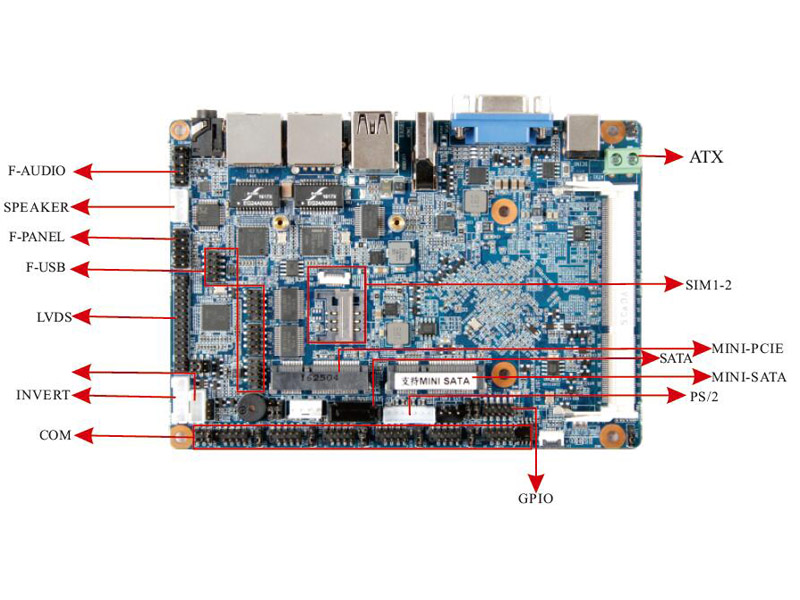

BoardI / O

8USB2.0 ,  6 COM ,  front audio , CLR_CMOS , CPU fan power , System fan power ,GPIO,  Front panel ,  Speaker,  SIM Socket,  DC in,  LVDS,  inver

Expansion

1 MSATA,  1 MINI PCIE

System

Support Windows(WIN 7,  WIN 10...),  Linux

Mechanical & Environmental

Power Supply

DC 12V

Heat dissipation

Fan

Size(L×W)

146mm×102mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90%air humidity,no condensation

Packing list

EP3-S6DL26Amotherboard×1,   SATA data cable×1,   SATApower cable×1,  COMcanle x1

Order Information

EP3-S6I3DL26A

Soldered on-board I3 U CPU

EP3-S6I5DL26A

Soldered on-board I5 U CPU

EP3-S6I7DL26A

Soldered on-board I7 U CPU



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
