19inch Resistive Touch Screen Industrial Panel PC
19inch Resistive Touch Screen Industrial Panel PC

19inch Resistive Touch Screen Industrial Panel PC

19 inch Touchscreen Industrial Panel PC, Support Soldered onboard I3 I5 I7 U series CPU motherboard

  • Certification :

    CE, FCC
  • OEM/ODM :

    Yes
  • Shipping Place :

    Shenzhen
  • Packaging :

    Carton
  • Delivery Time :

    According to Quantity
  • Payment Terms :

    T/T
  • Supply Ability :

    motherboard 100000 pieces / month; IPC 5000 sets / month
  • Origin :

    Guangdong, China
  • Brand :

    Yanyue
  • Stock :

    Yes
  • Model :

    IPPC-1901T2

19inch Resistive Touch Screen Industrial Panel PC

Product Introduction

This series of products is designed to meet the requirements of harsh industrial environments with high interference resistance, good dustproof, heat dissipation, vibration resistance, EMC performance, high system reliability and environmental applicability, and is a product for industrial automation industry, medical machinery, medical information technology, wind power and other harsh industrial field control applications.



Specifications optional configurations
Front Panel Aluminum panel, brushed and oxidized natural color Other colours can be customized
Back chassis 1.2mm steel plate, Silver Other colours can be customized
LCD Screen 19" TFT, LED backlight; Resolution 1280*1024; Dot matrix: 0.297*0.297; Max. colour: 16.7M; Brightness: 350cd/㎡; Contrast ratio: 1000:1; Response time: 3.6ms; MTBF: 50,000h Viewing angle: (+85° ~ -85°) (+80° ~ -80°).
Touch Screen Resistive  screen Customizable Capcitive screen
Adaptive Motherboard Low Power ITX Motherboard  All low-power ITX motherboards are available
CPU/GPU Intel i5 3317U Optional 3rd/4th/6th/7th Generation i3/i5/i7 U Series CPU
Memory 4G DDR3  Optional 2G/8G/16G,Max up to 32G notebook memory
Hard Disk 128G MSATA Optional 32G/64G/256G/512G mSATA;2.5"
500G/1T/2T HDD and 512G/1T SSD

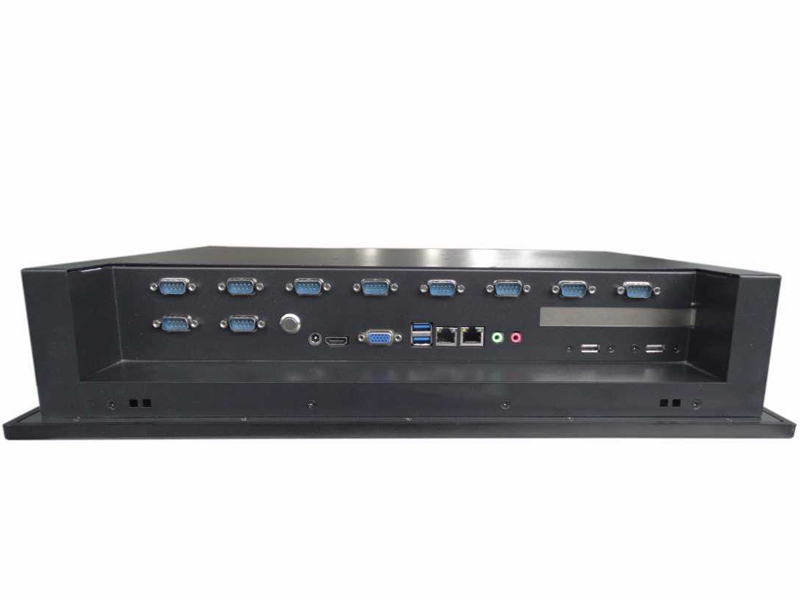

Interfaces DC12V in4USB 2RJ45(Gigabite);VGAHDMI; Audio out;   MIC in;2 antenna holes; 6COM; 10 DB9;1 slot Customizable 6USB or 10COM or 1LPT;  customizable wide voltage input;Customizable aerial plug or Phoenix terminal DC input, customizable wide voltage input
Ethernet 2LAN(Gigabite Network)
Display Interface VGA + HDMI
Expansion 1 slot for additional COM, LPT or USB
Size 477(length)* 390(width)* 98(thickness)mm Net/Gross Weight 7/8KG
Power Supply 250W industrial ATX power supply
Installation mode Recessed screw mount;Recessed hook mounting; VISA wall mount



Product Features

■ Brushed aluminum panel; panel IP65 waterproof. Optional full IP65

■ Low-power U series I3/I5/I7 series CPUs on board

■ 10COM(DB9)  for easy access to multiple COM

 ■ 1 slot for optional COM or LPT or USB

■ 2LAN 6 COM 4 USB as standard

■ Multiple mounting options available

■ Resistive touch screen, optional capacitive screen



Resistive touch Panel PCTouch Industrial Panel PC



Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
IP rating  Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration



Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
