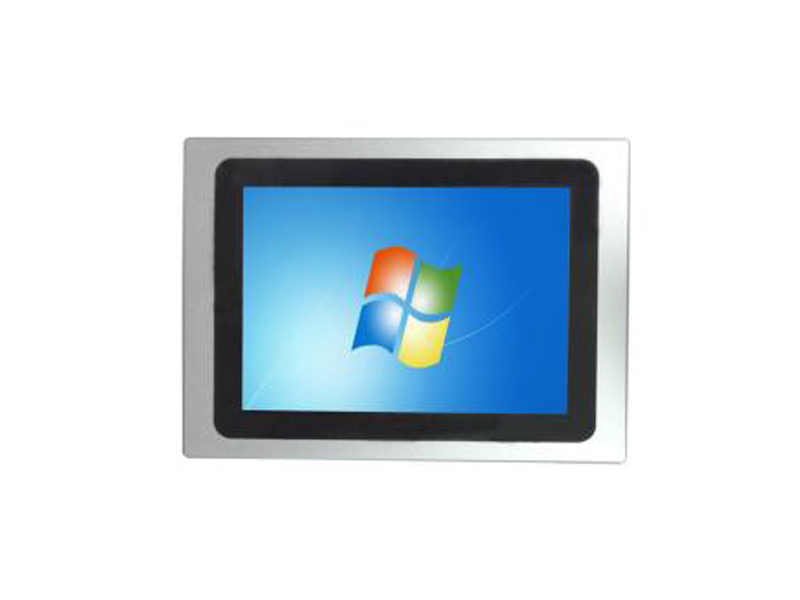

10.4 Inch Capacitive Touch Industrial Panel PC
10.4 Inch Capacitive Touch Industrial Panel PC

10.4 Inch Capacitive Touch Industrial Panel PC

10.4" capacitive Touch Industrial Panel PC, support 3rd 4th Notebook CPU.

  • Certification :

    CE, FCC
  • OEM/ODM :

    Yes
  • Shipping Place :

    Shenzhen
  • Packaging :

    Carton
  • Delivery Time :

    According to Quantity
  • Payment Terms :

    T/T
  • Supply Ability :

    motherboard 100000 pieces / month; IPC 5000 sets / month
  • Origin :

    Guangdong, China
  • Brand :

    Yanyue
  • Stock :

    Yes
  • Model :

    IPPC-1002T2

10.4 Inch Capacitive Touch Industrial Panel PC

Product Introduction

Yanyue IPPC-1002T2 industrial all-in-one panel PC with IP65 rated . Support  generations notebook i3/i5/i7 series CPU, high cost-performed.



Specifications Optional Configurations
Front Panel Aluminum alloy panel, sandblasted oxidized natural color Other colours can be customized
Back Chassis 1.2mm steel plate, grey,Sandblasted natural fins Other colours can be customized
LCD Screen 10.4" TFT, LED backlight; Resolution 1024*768; Dot matrix: 0.297*0.297; Max. colour: 16.7M; Brightness: 350cd/㎡; Contrast ratio: 800:1; Response time: 16ms; MTBF: 50,000h Viewing angle: (+80° ~ -80°) (+80° ~ -80°).
Touch Screen Capcitive  screen
Adaptive Motherboard All dedicated motherboard for Yanyue
CPU/GPU Intel i5 3230M Optional other  Generations i3/i5/i7 notebook CPU and generations U-series CPU,optional J6412/J4125/J1900 low power CPU
Memory 4G DDR3  Optional 2G/8G/16G,Max up to 32G notebook memory
Hard Disk 128G MSATA Optional 32G/64G/256G/512G mSATA
Interfaces Phoenix Terminal(DC12V)4USB 2RJ45(Gigabite);VGAHDMI; Audio out;   MIC in; 1COM ustomizable 1LAN 4COM 4USB or 2LAN 2COM 4USB
Ethernet 2LAN(Gigabite Network)
Display Interface VGA + HDMI
Size 293(length)* 230(width)* 61.5(thickness)mm Net/Gross Weight 3/3.5KG
Power Supply 12V@5A Adapter
Installation mode Recessed screw mount; VISA wall mount



Product Features

■Support 2nd/3rd/4th generation notebook i3/i5/i7 series CPU

■Resolution 1024*768

■Aluminum alloy sandblasted panel, panel IP65 waterproof rating

■Standard 2LAN 1COM 4USB, optional 1LAN or multi-serial port

■Support mSATA SSD and 2.5” HDD/SSD

Simultaneous installation

■ A variety of installation methods can be selected

Industrial Panel PC

Industrial Panel PC



Work and Environment
Working Temperature (-20~60)℃ Storage Temperature -40~75℃ Environmental Humidity 0~90% air humidity, no condensation
IP Rating  Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration



Product Installation Dimension Diagram

All-in-One Industrial Computer

Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
10.4 Inch Capacitive Touch Industrial Panel PC
10.4 Inch Capacitive Touch Industrial Panel PC
10.4" capacitive Touch Industrial Panel PC, support 3rd 4th Notebook CPU.
View details

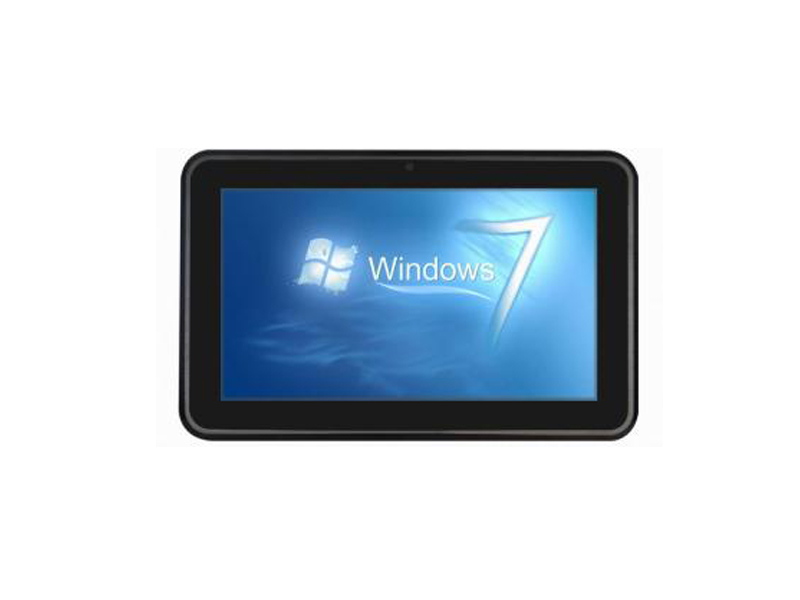

10.1 Inch Capacitive Touchscreen Industrial Panel PC
