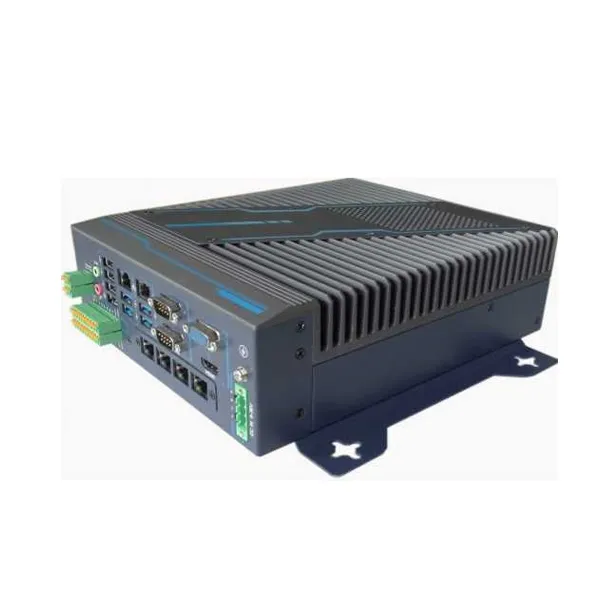

All-aluminum Fanless Embedded Industrial Box PC Supports 4th/6th/7th/8th/9th T-series CPUs Optional 2/4 Expansion Slots
Product Introduction
This box PC is built with an all-aluminum chassis. This type of construction is often used in industrial PCs for its durability and heat dissipation properties. Aluminum can help dissipate heat effectively without the need for fans, making it suitable for fanless designs. This box PC supports a range of Intel CPUs from the 4th to the 9th generation T-series CPUs. T-series CPUs are typically low-power processors suitable for embedded systems and industrial applications. This type of industrial box PC is commonly used in environments where reliability, durability, and the ability to function without active cooling (fanless) are essential. Industrial settings often expose electronic equipment to harsh conditions, including dust, vibrations, and temperature extremes. Additionally, the flexibility of expansion slots allows for customization to meet specific connectivity and functionality needs.
Features
■ All-aluminum fanless design with teeth, fully sealed inside
■ Support 4th/6th/7th/8th/9th generation T-series desktop CPU
■ 2LAN Intel GbE，8USB（4USB3.0)
■ 2RS232/RS422/RS485, customizable 6COM
■ Support M.2+ 2.5-inch dual hard drive
■ Support VGA+HDMI display
■ Modular design, there are the following modules to choose from:
1.MXM module:optional 2LAN or 4LAN,4USB3.0
2.Power supply module：12V input or 9~36V wide voltage input
3.GPIO module： optional 16-bit optically isolated GPIO
4.Expansion module：2-slot expansion：PCIEx16+PCIEx4;PCIEx16+PCI
Specification | Optional specification | ||||
Chassis | All aluminum with teeth and fanless, fully enclosed modular design | ||||

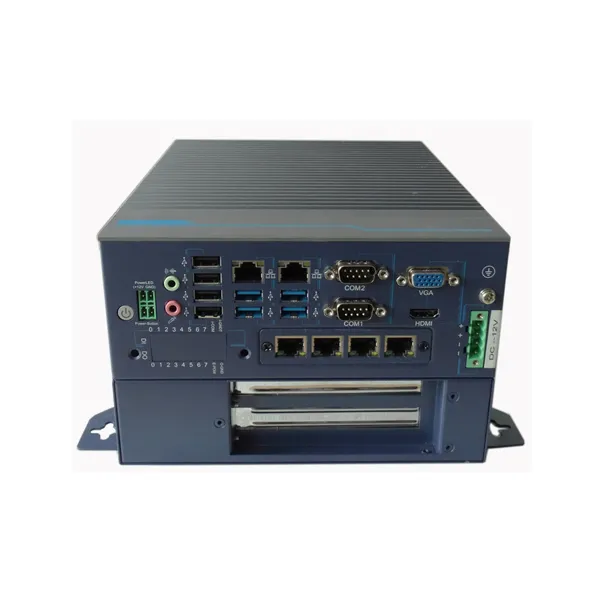

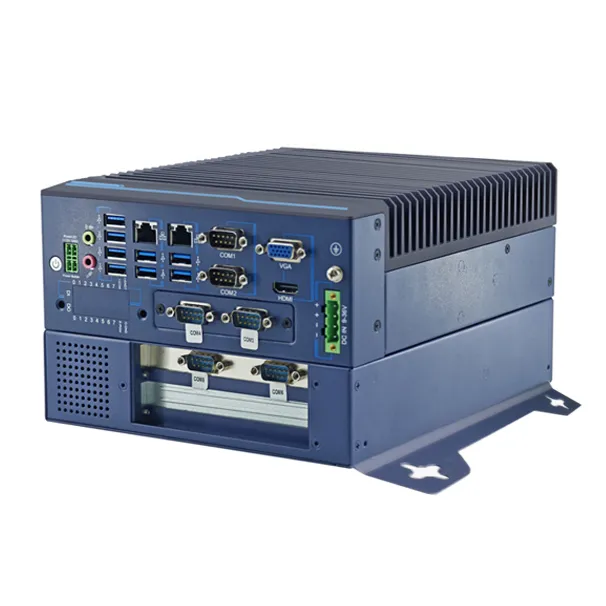

Panel I/O | Switch with light; Switch and indicator light lead terminal; 2Audio jack; 4USB2.0; 2LAN+4USB3.0; 2COM; VGA+HDMI; Power board module; GPIO module (optional); MXM module (optional); Expansion module (optional) | ||||
hard drive rack | 1 x 2.5" hard disk driverack | ||||
Motherboard | Specialized motherboards | OptionalH81/Q85/H110/Q170 chipset motherboards | |||
Graphic card | CPU integrated,supportVGA+HDMI display | ||||
NIC | 2LANIntel GbE，Expandable to2LAN or 4LAN via MXM module and 2LAN,4LAN,6LAN or 8LAN ports via expansion slots. | ||||
CPU/GPU | Intel i7 7700 | Optional4th/6th/7th/8th/9th generation desktopCPU | |||
Memory | 8G DDR4 | Optional4G/16G/32G laptop memory | |||
Storage | 512G SSD | Optional SSD and 2.5-inchHDD in various capacities | |||
Size | Without bracket:192*230*77mm（No expansion）；192*230*127mm（2-slot expansion）；192*230*177（4-slot expansion） | ||||
Adapter | Optional12V@10A; 12V@12.5A; 19V@9.47A | ||||
Expansion | MINI PCIE; MXM module；power supply module；GPIO module；2-slot expansion module；4-slot expansion mogule | ||||
Installation | Bracket installation | ||||
Work & Environment | |||||
Working temperature | -10～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity,no-condensation |
Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | ||||
EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | ||
Order information | |||||
MIS-EPIC10-Q85Q85 chip，support4th generation desktopT-seriesCPU，Supports all expansion modules | |||||
MIS-EPIC10-H110H110 chip，support6th/7th/8th/9th generation desktopT-seriesCPU，MXM module with2LAN support and all other expansion modules | |||||
MIS-EPIC10-Q170Q170 chip，support6th/7th/8th/9th generation desktopT-seriesCPU，Supports all expansion modules | |||||
MXM module：2LANIntel GbE module；4LANIntel GbE module；4USB3.0 module | |||||
Expansion module：PCIEx16+PCIEx4 expansion module；PCIEx16+PCI expansion module；PCIEx16+3PCI expansion module | |||||
16-bit optically isolatedGPIO module；9~36V wide voltage module | |||||
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
