Products Description

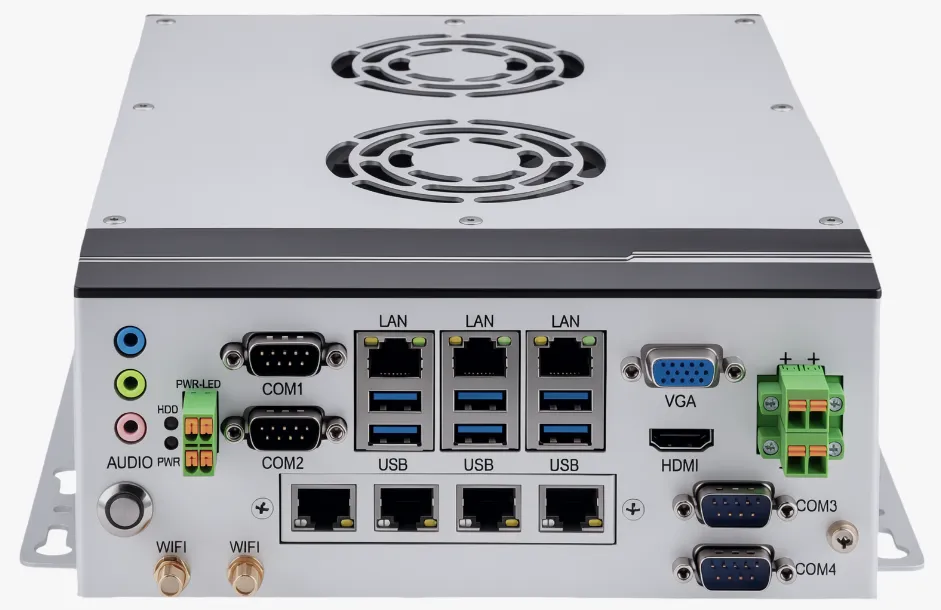

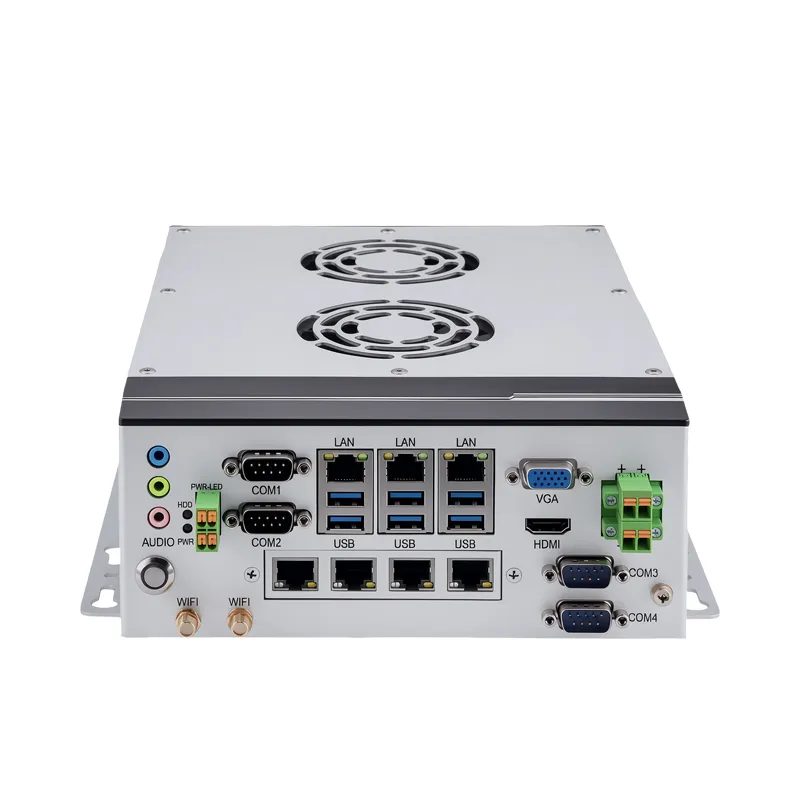

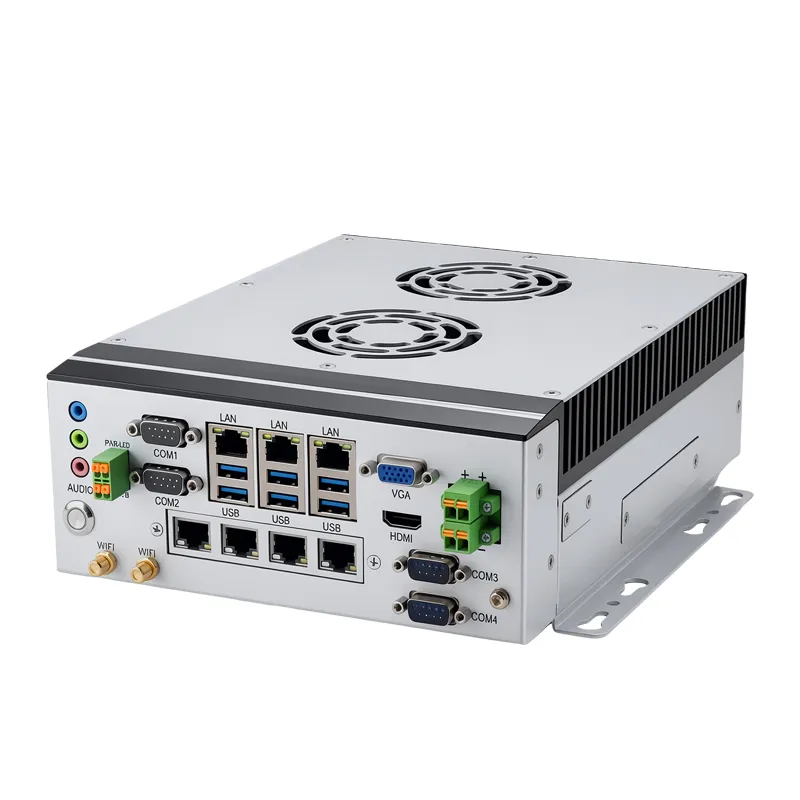

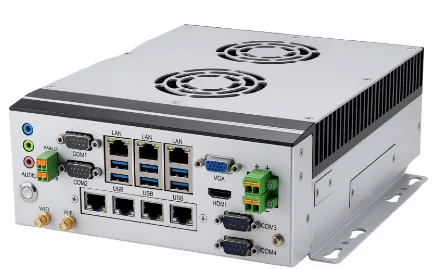

All aluminum BOX PC industrial computer with fan on the cooling teeth, support 6/8/9th generation desktop CPUs, 7LANS/6COM/6 USB
Product Introduction
The All-Aluminium Industrial Box PC with 6/8/9th generation desktop CPU is a high-performance, reliable computing solution designed for industrial applications. Featuring a durable, all-aluminium design, this PC ensures efficient heat dissipation, making it ideal for harsh environments such as factories, warehouses, and outdoor installations. Powered by intel processors, it offers a perfect balance of performance and energy efficiency.
With versatile I/O options including multiple USB, LAN, HDMI, and COM ports, it is highly adaptable for various industrial automation, IoT, and edge computing applications. The rugged construction guarantees longevity, even in challenging conditions like extreme temperatures and dust. This compact, lightweight system is easy to integrate, offering reliable performance with minimal maintenance, perfect for critical industrial operations.
Features
All aluminum cooling teeth with fan design, fully enclosed inside;
Supports the full range of desktop CPUs on 6/8/9;
3*Intel Gigabit Ethernet ports, optional with 4*Ethernet port modules；
7*Ethernet ports are optional POE；
48serial ports on the interface surface, optional 2*serial ports on the side；
6*serial ports can be selected with RS485；
6*USB 3.0 ports；
Phoenix terminals with external switches and indicator lights;
Optional WIFI and 4G/5G wireless modules;
Supports RAID 0, 1;
Supports 9-36V wide voltage input.
| Specifications | Optional configurations | |||||||
| Chassis | Fully aluminum toothed fan with fully enclosed modular design | |||||||
| Interface Surface | 9-36V input Phoenix terminal; VGA+HDMI;3*LANs+6*USB3.0；4*COM； External switch and power light terminals; Power hard drive indicator light; 3-hole audio interface; Power board module; power switch; 4-port MXM module (optional); WIFI/4G/5G antenna terminal (optional) | |||||||
| Hard Drive Rracks | 2*2.5-inch hard drive racks | |||||||
| Adaptive Motherboard | Dedicated motherboard, Z390 chip | |||||||
| GPU | CPU integration, supporting VGA+HDMI display | Alternatively, a DVI interface or a second HDMI can be introduced | ||||||
| Network | 3*Intel network ports (1*i219+2*i210), which can be expanded to 4*I210 network ports through MXM modules | |||||||
| CPU/GPU | Intel i7 8700 | Optional 6/8/9th generation desktop CPUs | ||||||
| Memory | 8G DDR4 | Optional 2*DDR4 notebook memories of each capacity, maximum 64GB | ||||||
| Hard Disk | 512G SSD | Optional M.2 solid-state drives of various capacities and 2*2.5-inch mechanical hard drives | ||||||
| RAID | Choose 2*SATA interface hard drives to form RAID 0 or 1 | |||||||
| Size | 197*255*83mm（without rack）； 234*255*89mm（inlcude rack） | |||||||
| Power Supply | Optional 12V@10A; 12V@12.5A; 19V@9.47A | |||||||
| Expansion | Optional MXM 4*Ethernet port module; Customizable GPIO modules and light source modules | |||||||
| Installation mode | Bracket installation | |||||||
| Work and Environment | ||||||||
| Working temperature | -30～70℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||

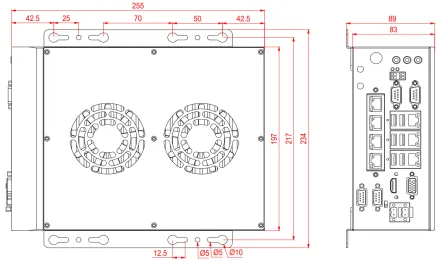

Dimension Diagram：
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
