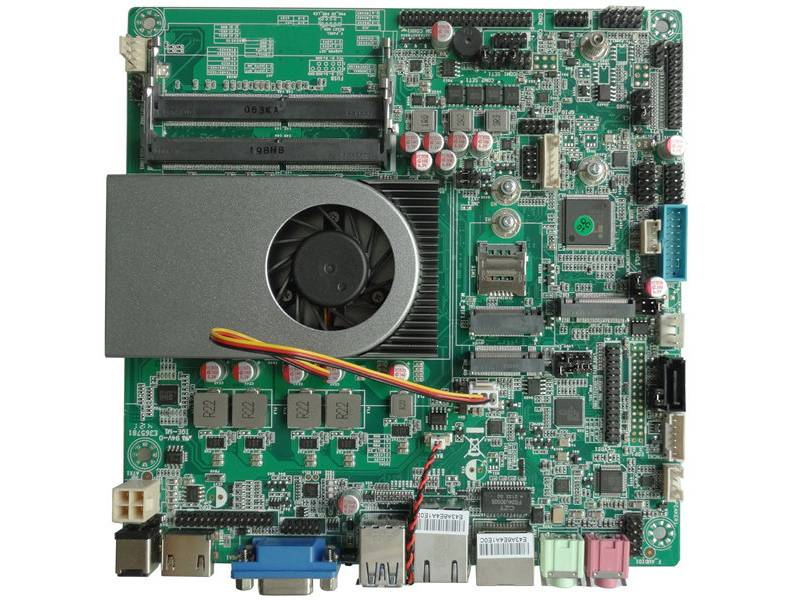

ITX-H81AH2AA
Mini ITX Motherboard Intel H81 Chip, 2LAN 10COM 10USB，PCIEx16 Expand, ATX Power
Mini ITX Motherboard Intel H81 chip, 2LAN 10COM 10USB, PCIEx16 Slot, ATX Power
Product Introduction
Choosing the best industrial motherboard (or best motherboard for another type of PC task) is a key step in your system build, even though things like CPUs and graphics cards get more attention. Every part of your PC connects to your motherboard. Its form factor (ATX, E-ATS, ITX, etc.) will dictate the size of your case. And a board's socket and chipset will limit which processors you can install.
Product Features
■ Supports LGA1150 architecture 4th generation Intel® CoreProcesso
■ 2 Realtek 8111 Gigabit LAN cards
■ 2VGA, HDMI ports
■ 10COM, 8USB2.0, 2USB3.0
■ 8-bit GPIO
■ SIM Socket
■ 1 PCIE x16 slot
System
|
CPU/GPU |
Support for Intel Haswell 1150 Series Desktop Class i3 i5 i7 & Pentium®/ Celeron® CPU |
|
System on Chip |
Intel H81 |
|
Memory |
2×DDR3 SO-DIMM,up to 16GB |
|
Storage |
2×SATA 3.0 1×mSATA |
|
Sound card |
Realtek ALC662, supports 5.1 channels |
|
Ethernet |
2×Realtek RTL8111F network card chip, PCI-E bus gigabit network card 1×MINI PCI-E interface, supporting WIFI/4G, etc. |
|
Display |
CPU integrated graphics card |
|
LVDS |
2×VGA, 1×HDMI |
|
Double display |
VGA VGA, VGA HDMI synchronous / asynchronous dual display |
|
COM |
10×COM RS-232, COM2,3,4 optional 5V/12V charged |
|
USB |
10×USB (6 on the back IO, 4 on board pins) |
|
BackplaneI / O |
PS/2+USB,VGA+HDMI,COM+VGA,LAN+USB3.0,LAN+USB2.0,Line-out+Mic-in |
|
BoardI / O |
9×COM pin can be extended 9 COM RS-232 interface, 3×5V/12V live selection hopping cap 2×USB 2.0 pin can extend 4 USB 2.0 interface; 2×SIM/USB choose hopping cap 1×LPT pin, 1×power amplifier pin, 1×front audio pin 1×CLR_CMOS pin, 1×GPIO pin 1×20PIN ATX power outlet, 1×4-PIN CPU power outlet, 1×CPU fan power outlet, 1×system fan power outlet 1×front panel pin, 1×buzzer |
|
Expand |
1× PCIEx16; 1× MINI PCIE |
|
Specific function |
Support for watchdog, diskless startup, network wakeup, power on and timing |
Mechanical & Environmental
|
Power supply |
ATX |
Heat dissipation |
Fan |
Size(L×W) |
170mm×170mm |
|
|
Working temperature |
-15~55℃ |
Storage temperature |
-40~75℃ |
Environmental humidity |
0~90%air humidity,no condensation |
|
|
Packing list |
ITX-H81AH2AA-2V motherboard |
×1 |
SATA data line |
×1 |
||
|
COM line |
×9 |
Guard |
×1 |
|||
|
Drive disc |
×1 |
|
|
|||
Application area
Industrial control computer, industrial tablet computer, industrial automation, automation equipment, integrated machine, medical treatment, digital sign, advertisement machine, etc.
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
