Embedded Computer
Products

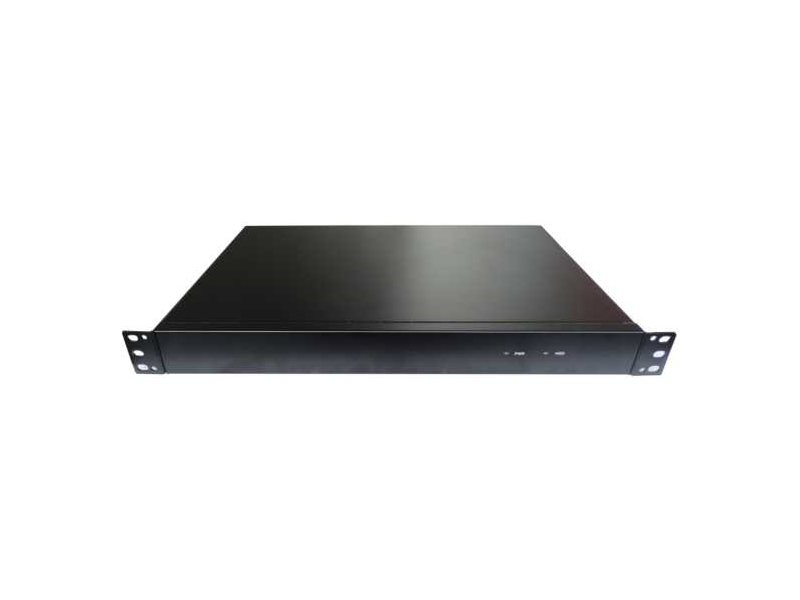

1-slot Rackmount 1U Industrial PC Support ATX/ Micro-ATX motherboards
1-slot Rackmount 1U Industrial PC Support ATX/ Micro-ATX motherboards

1-slot Rackmount 1U Industrial PC Support ATX/ Micro-ATX motherboards

19inch Standard Rackmount 1U IPC , Support generations of i3 i5 i7 series CPU,1-slot expand.

1-slot Rackmount 1U Industrial PC Support ATX/ Micro-ATX motherboards



Product Introduction

Designed for controlling industrial automation solutions, the IPC-ITX1U01 Intelligent Industrial PC (iPC) delivers consistently high real-time performance — plus security that stays up-to-date without disrupting your operating system.  The 1-slot Rackmount 1U Industrial PC is set up for consistently high real-time performance, so you can expect long-term durability and reliable operation of your industrial automation solution. Other industrial PCs try to achieve this, but tend to yield too much performance jitter and real-time errors.



Specifications Optional Configurations
Chassis All steel structure, industrial black Optional other color
Front Power/HDD indicator
Back 1U power supply; large square hole for motherboard; 1-slot expansion;2COM can be added
Hard disk rack 1*2.5" shock-resistant hard drive cages
Adaptive Motherboard Support all ATX/MATX motherboards in Yanyue
CPU/GPU Intel i3 2120 Dual Core 4 Threads 3.3G Hz Support all generations of Celeron, Pentium, i3, i5, i7 series CPU
Memory 4G DDR3  Optional 2G/8G/16G/32G memory
Hard Disk 128D SSD Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD
Interfaces AC input;6USB;2RJ45(Gigabite);VGA,DVI;HDMI;Audio Line-Out;MIC Input;2COM(Standard) Depends on the baffle connector of the motherboard
Expand PCI or PCIEx16
Size Handle not included:483*300*45.2 Net/Gross Weight 4/5KG
Power Supply 200W 1U Industrial Powern Supply Optional higher power
Installation mode 19" Standard Rackmount



Product Features

■  Heat dissipation, dust and vibration resistance
■ Support all ATX/ Micro-ATX motherboards in Yanyue
■ 1PCI or PCIE expand
■ 2COM can be added
■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements

19inch Standard Rackmount 1U Industrial PC1-slot Rackmount 1U Industrial PC



Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration



Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
